Bottom Guide System for Hanging Gates: DIY Installation
Imagine: you’ve installed beautiful hanging gates, but at the first gust of wind, they start to sway, bang against the posts, or worse, scratch your fence. To prevent the gates from flapping like a "curtain in a draft," they need a point of support at the bottom. A bottom guide system is exactly the device that keeps the bottom of the gate perfectly aligned.
Why is this necessary? Without bottom fixation, the gate leaf can act like a sail, potentially bending the upper rollers or simply getting off track. At KSV Systems, we offer three proven ways to solve this problem once and for all.

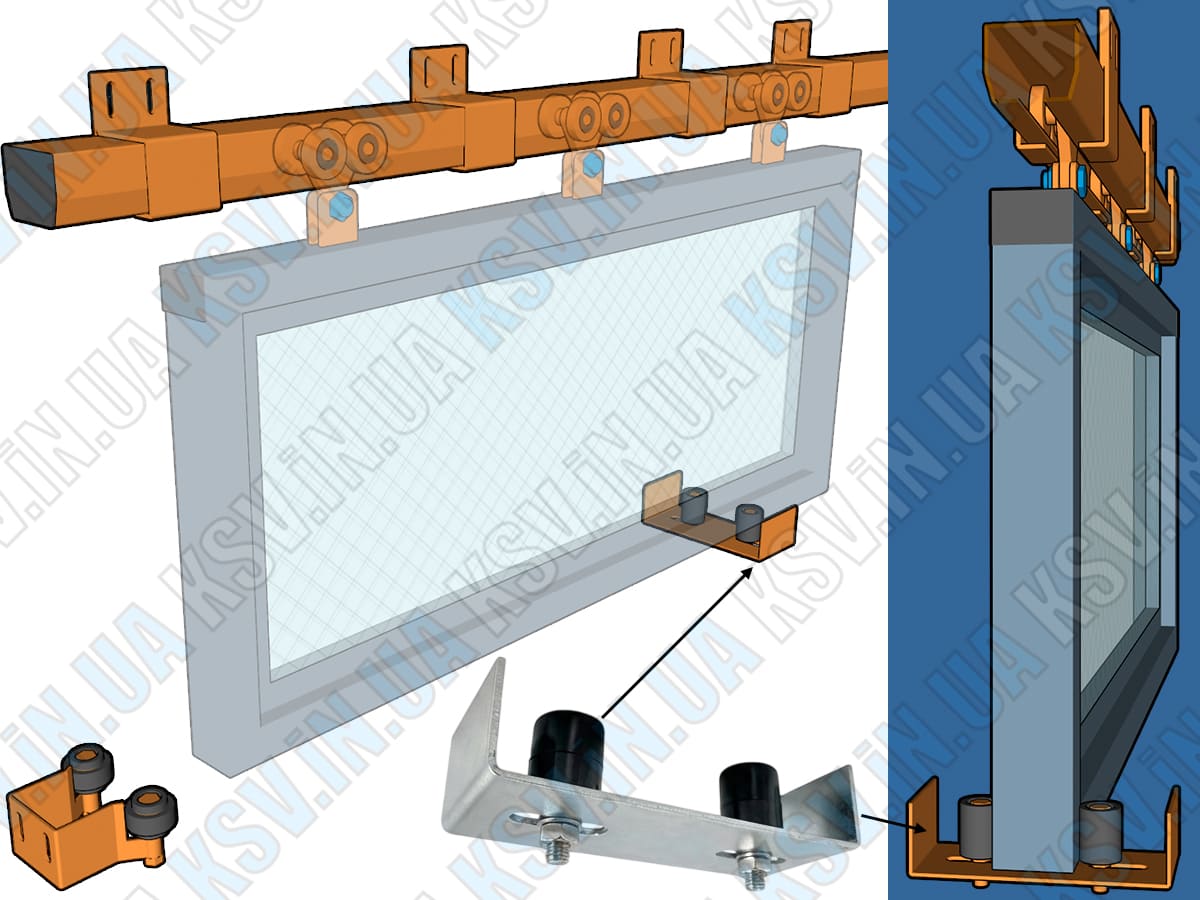

Option №1: Economy Solution (U-bracket and Open Rollers)
This is the most budget-friendly and easiest option to install. Principle of operation: your gate frame simply "rides" between two or four rollers that are firmly bolted to the ground or a post.
- ✔ Pros: Very low price, 15-minute installation.
- ✘ Cons: Rollers are vulnerable to dirt, dust, and direct sunlight (plastic can harden over time).

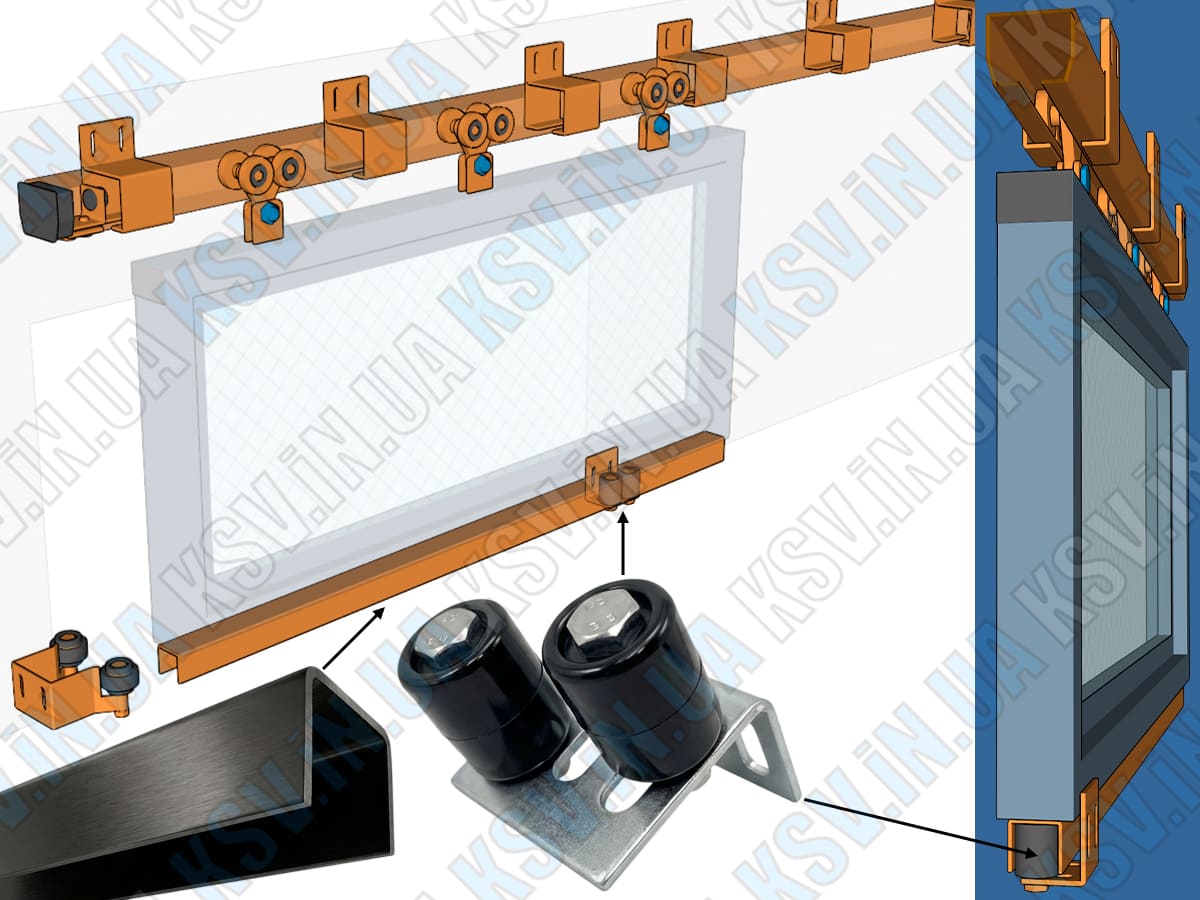

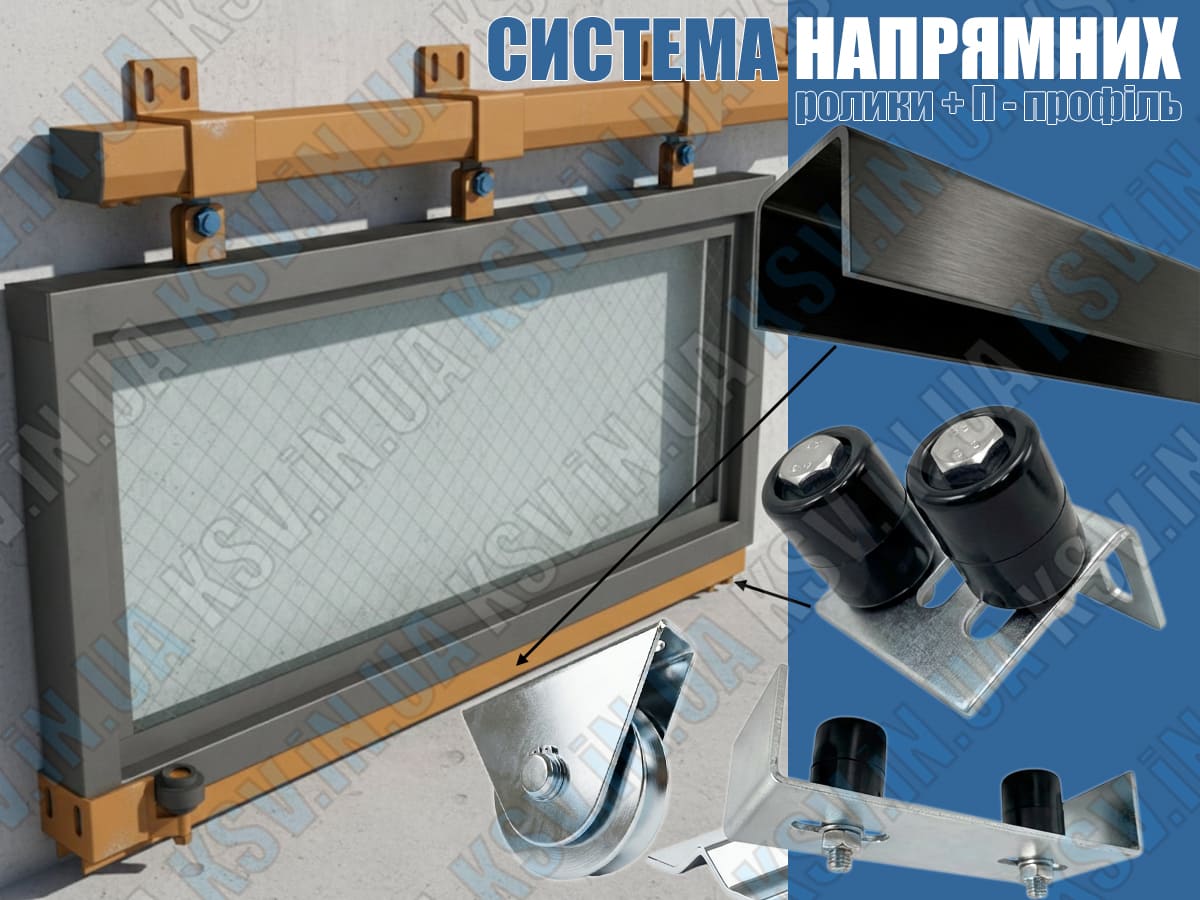

Option №2: "The Golden Mean" by KSV (Hidden System)
The most aesthetic option. Here, we attach a special U-shaped profile to the very bottom of your gate. Small enclosed rollers, which are fixed to the floor, then run inside it.
Main Feature: The rollers are hidden and protected from rain by the profile, and the gap between the gate and the ground is minimal. Perfect for private homes!

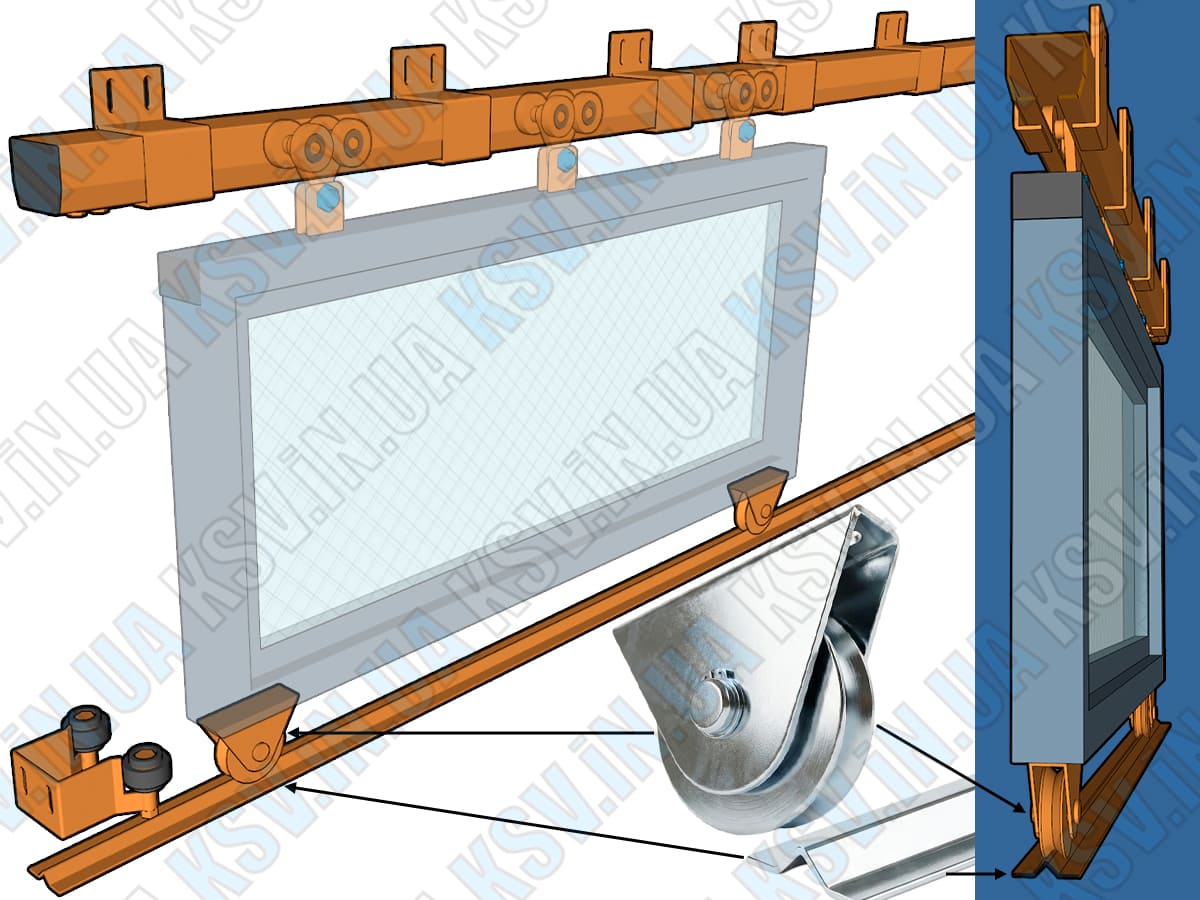

Option №3: "Tank Strength" (Monorail for Heavy Gates)
If your gate weighs as much as a small plane or is located in a very windy area, this is your choice. An iron monorail is laid along the entire travel path, and rollers are mounted on the gate itself.
Why it's great:
- ⚓ Part of the gate's weight is transferred to the ground, not just the upper beam.
- ⚓ Upper rollers "rest" and last 2-3 times longer.
System Comparison Table
| Parameter | Option №1 (Economy) | Option №2 (Standard) | Option №3 (Reinforced) |
|---|---|---|---|
| Installation Complexity | Very Easy | Moderate | Requires Attention |
| Roller Protection | None | Full (inside profile) | High |
| Load Capacity | Light gates | Medium gates | Heavy/Industrial |
How to Install the System Yourself?
You don't need to be a master of engineering. Just follow these three rules:
- The Level is Sacred. Even if the bottom roller is offset by 5 mm relative to the top beam, the gate will "bind." Use a plumb line or level.
- Cleanliness. If you install a monorail (Option №3), make sure water doesn't stagnate and ice doesn't accumulate in it during winter.
- Fasteners. Use reliable anchors or weld to embedded plates. The bottom point takes all the wind impact!
